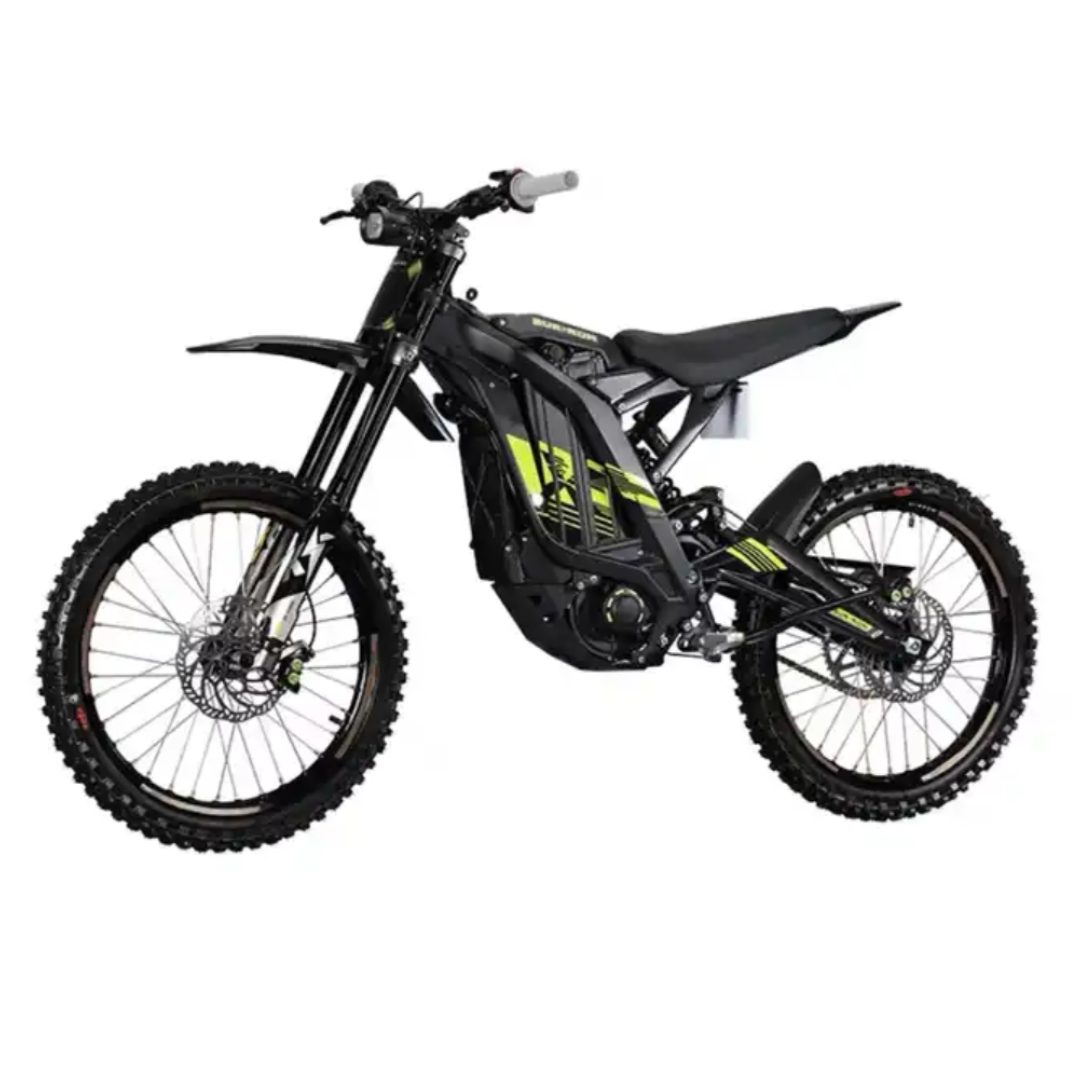

Surron light bee off road 2023 60V 6000W 38AH

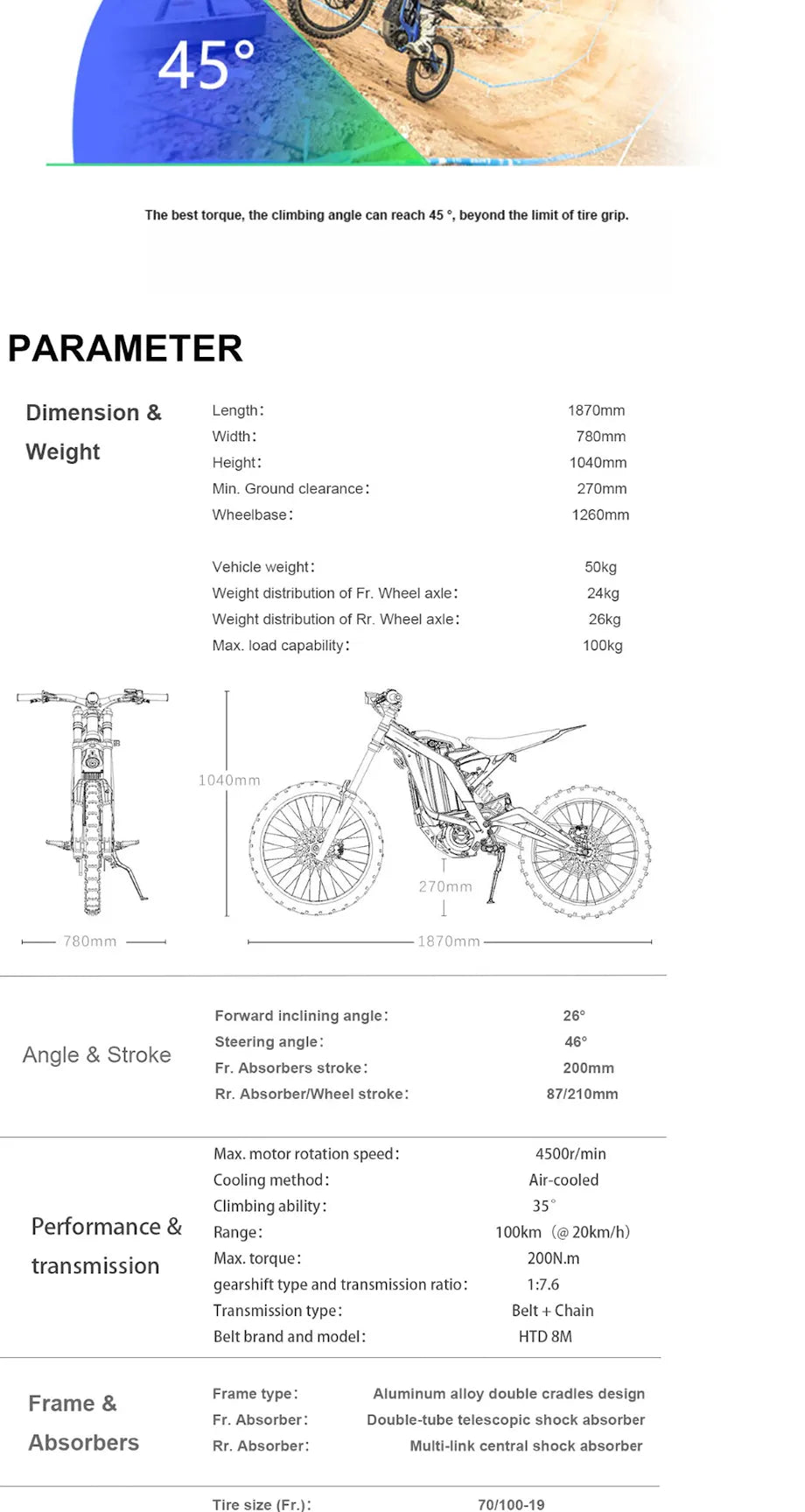

Dimensions:

• Length: 1870mm
• Width: 780mm
• Height: 1040mm
• Minimum ground distance: 270mm
• Wheelbase: 1260mm
• Vehicle Weight: 50kg
• Front axle mass distribution: 24kg
• Rear axle mass distribution: 26kg
• Maximum load weight: 100kg

Angle and Itinerary:

• Anteversion: 26°
• Steering Angle: 46°
• Front Fork Travel: 200mm
• Rear Suspension Travel: 87mm / 210mm

Performance and Transmission:

• Motor Maximum Speed: 4500r/min
• Cooling Method: Forced air cooling
• Climbing Angle: 35°
• Endurance: 100km (at 20km/h speed)
• Maximum Torque: 200N.m
• Transmission Type and Ratio: 1:7.6
• Drive: Belt + Chain
• Belt Specifications: Horse brand HTD 8M CXA drive

Frame and Shock:

• Frame Type: Aluminum double cradle
• Front Shock Type: Double cylinder vertical telescopic
• Rear Shock Type: Multi-link center shock

Tires and Brakes:

• Front Tire Specifications: 70/100-19
• Rear Tire Specifications: 70/100-19
• Front Rim Type: 19x1.4
• Rear Rim Type: 19x1.4
• Front Brake Type: Four-piston hydraulic disc brake
• Rear Brake Type: Four-piston hydraulic disc brake

Electronic Components:

• Motor: 60V 5400W
• Lithium Battery: 60V 32AH
• Controller Type: 48/60V adaptive
• ECU Type: GPS data connection
• Speaker: European standard speaker
• Charger Type: Constant current constant voltage 58.8V-5A
• Power Battery Specifications: 51.8V 25AH lithium battery pack
• Front Headlamp Type: Bicycle headlight (v) (w) (mm)
• Brake Light/Rear Light Type: Bicycle Deuterium (v) (w)
• USB Power Supply: USB-2.1A single socket
• Instrument: IBN negative liquid crystal instrument
